"""This is script is an example of how to run Ptera Software's
SteadyHorseshoeVortexLatticeMethodSolver with a custom Airplane."""
# First, import the software's main package. Note that if you wished to import this
# software into another package, you would first install it by running "pip install
# pterasoftware" in your terminal.
import pterasoftware as ps
# Configure logging to display info level messages. This is important for seeing the
# output from the log_results function.
ps.set_up_logging(level="Info")
# Create an Airplane with our custom geometry. I am going to declare every parameter
# for Airplane, even though most of them have usable default values. This is for
# educational purposes, but keep in mind that it makes the code much longer than it
# needs to be. For details about each parameter, read the detailed class docstring.
# The same caveats apply to the other classes, methods, and functions I call in this
# script.
example_airplane = ps.geometry.airplane.Airplane(
wings=[
ps.geometry.wing.Wing(
wing_cross_sections=[
ps.geometry.wing_cross_section.WingCrossSection(
num_spanwise_panels=8,
chord=1.75,
Lp_Wcsp_Lpp=(0.0, 0.0, 0.0),
angles_Wcsp_to_Wcs_ixyz=(0.0, 0.0, 0.0),
control_surface_symmetry_type="symmetric",
control_surface_hinge_point=0.75,
control_surface_deflection=0.0,
spanwise_spacing="cosine",
airfoil=ps.geometry.airfoil.Airfoil(
name="naca2412",
outline_A_lp=None,
resample=True,
n_points_per_side=400,
),
),
ps.geometry.wing_cross_section.WingCrossSection(
num_spanwise_panels=None,
chord=1.5,
Lp_Wcsp_Lpp=(0.75, 6.0, 1.0),
angles_Wcsp_to_Wcs_ixyz=(0.0, 5.0, 0.0),
control_surface_symmetry_type="symmetric",
control_surface_hinge_point=0.75,
control_surface_deflection=0.0,
spanwise_spacing=None,
airfoil=ps.geometry.airfoil.Airfoil(
name="naca2412",
outline_A_lp=None,
resample=True,
n_points_per_side=400,
),
),
],
name="Main Wing",
Ler_Gs_Cgs=(0.0, 0.0, 0.0),
angles_Gs_to_Wn_ixyz=(0.0, 0.0, 0.0),
symmetric=True,
mirror_only=False,
symmetryNormal_G=(0.0, 1.0, 0.0),
symmetryPoint_G_Cg=(0.0, 0.0, 0.0),
num_chordwise_panels=6,
chordwise_spacing="cosine",
),
ps.geometry.wing.Wing(
wing_cross_sections=[
ps.geometry.wing_cross_section.WingCrossSection(
num_spanwise_panels=8,
chord=1.5,
Lp_Wcsp_Lpp=(0.0, 0.0, 0.0),
angles_Wcsp_to_Wcs_ixyz=(0.0, 0.0, 0.0),
control_surface_symmetry_type="symmetric",
control_surface_hinge_point=0.75,
control_surface_deflection=0.0,
spanwise_spacing="cosine",
airfoil=ps.geometry.airfoil.Airfoil(
name="naca0012",
outline_A_lp=None,
resample=True,
n_points_per_side=400,
),
),
ps.geometry.wing_cross_section.WingCrossSection(
num_spanwise_panels=None,
chord=1.0,
Lp_Wcsp_Lpp=(0.5, 2.0, 1.0),
angles_Wcsp_to_Wcs_ixyz=(0.0, 0.0, 0.0),
control_surface_symmetry_type="symmetric",
control_surface_hinge_point=0.75,
control_surface_deflection=0.0,
spanwise_spacing=None,
airfoil=ps.geometry.airfoil.Airfoil(
name="naca0012",
outline_A_lp=None,
resample=True,
n_points_per_side=400,
),
),
],
name="V-Tail",
Ler_Gs_Cgs=(6.75, 0.0, 0.25),
angles_Gs_to_Wn_ixyz=(0.0, 5.0, 0.0),
symmetric=True,
mirror_only=False,
symmetryNormal_G=(0.0, 1.0, 0.0),
symmetryPoint_G_Cg=(0.0, 0.0, 0.0),
num_chordwise_panels=8,
chordwise_spacing="cosine",
),
],
name="Example Airplane",
Cg_GP1_CgP1=(0.0, 0.0, 0.0),
weight=0.0,
s_ref=None,
c_ref=None,
b_ref=None,
)
# Define a new OperatingPoint, which we'll pass into the SteadyProblem.
example_operating_point = ps.operating_point.OperatingPoint(
rho=1.225, vCg__E=10.0, alpha=5.0, beta=0.0, externalFX_W=0.0, nu=15.06e-6
)
# Define a new SteadyProblem, which contains the OperatingPoint and a list of one or
# more Airplanes.
example_problem = ps.problems.SteadyProblem(
airplanes=[example_airplane],
operating_point=example_operating_point,
)
# Now that the Airplane and OperatingPoints exist within the SteadyProblem, I like to
# delete the external pointers to these objects to ease debugging.
del example_airplane
del example_operating_point
# Define a new solver. The available solver classes are
# SteadyHorseshoeVortexLatticeMethodSolver, SteadyRingVortexLatticeMethodSolver,
# and UnsteadyRingVortexLatticeMethodSolver. We'll create a
# SteadyHorseshoeVortexLatticeMethodSolver, which requires a SteadyProblem.
example_solver = (
ps.steady_horseshoe_vortex_lattice_method.SteadyHorseshoeVortexLatticeMethodSolver(
steady_problem=example_problem
)
)
del example_problem
# Run the solver.
example_solver.run()
# Call this function from the output module to log the results.
ps.output.log_results(example_solver)
# Save the solved solver to a JSON file. This allows us to load the results later
# without re-running the simulation. Use ".json.gz" for gzip compression, which is
# recommended over plain JSONs for all but the smallest, unmeshed geometry objects.
ps.save("example_steady_horseshoe_solver.json.gz", example_solver)
# Load the saved solver. The loaded object is identical to the original and can be
# passed to any output function.
loaded_solver = ps.load("example_steady_horseshoe_solver.json.gz")

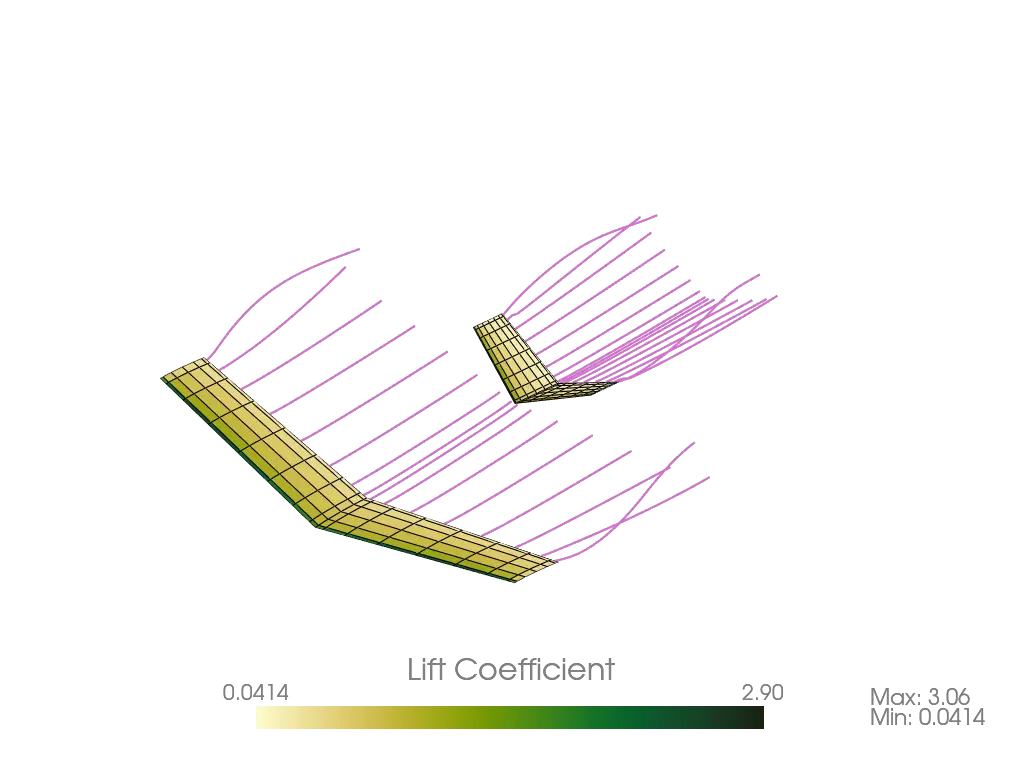

# Call the output module's draw function on the loaded solver.
ps.output.draw(
solver=loaded_solver,
scalar_type="lift",
show_streamlines=True,
show_wake_vortices=False,
save=False,
testing=False,
)
