"""Demonstrates running Ptera Software's FreeFlightUnsteadyRingVortexLatticeMethodSolver
on a static-geometry configuration.
The simulation releases a statically stable glider into an unpowered glide, coupling the
unsteady aerodynamics to MuJoCo's rigid body dynamics so the airplane flies a free six-
degree-of-freedom trajectory through the scene.
The script will likely take several minutes to run, and will log simulation progress and
results in a log file.
"""
import logging
# First, import the software's main package. Note that if you wished to import this
# software into another package, you would first install it by running "pip install
# pterasoftware" in your terminal.
import pterasoftware as ps
# Configure logging to write info level messages to a file. To display log messages on
# the console alongside progress bars instead, omit the handler argument.
ps.set_up_logging(level="Info", handler=logging.FileHandler("example_solver.log"))
# Create an Airplane with our custom geometry. I am going to declare every parameter for
# Airplane, even though most of them have usable default values. This is for educational
# purposes, but keep in mind that it makes the code much longer than it needs to be. For
# details about each parameter, read the detailed class docstring. The same caveats
# apply to the other classes, methods, and functions I call in this script.
#
# This is a simple glider: a cambered main wing, a symmetric horizontal stabilizer set
# at a negative incidence relative to the main wing, and a single vertical stabilizer.
# The planform, center of gravity, and inertia (defined further below) were tuned for
# static pitch and yaw stability and verified in XFLR5. The negative horizontal
# stabilizer incidence provides the restoring pitch moment that keeps the glider on a
# bounded, damped trajectory rather than diverging once it is released into free flight.
example_airplane = ps.geometry.airplane.Airplane(
wings=[
ps.geometry.wing.Wing(
wing_cross_sections=[
ps.geometry.wing_cross_section.WingCrossSection(
num_spanwise_panels=10,
chord=1.0,
Lp_Wcsp_Lpp=(0.0, 0.0, 0.0),
angles_Wcsp_to_Wcs_ixyz=(0.0, 0.0, 0.0),
control_surface_symmetry_type="symmetric",
control_surface_hinge_point=0.75,
control_surface_deflection=0.0,
spanwise_spacing="cosine",
airfoil=ps.geometry.airfoil.Airfoil(
name="naca2412",
outline_A_lp=None,
resample=True,
n_points_per_side=400,
),
),
ps.geometry.wing_cross_section.WingCrossSection(
num_spanwise_panels=None,
chord=1.0,
Lp_Wcsp_Lpp=(0.0, 5.0, 0.0),
angles_Wcsp_to_Wcs_ixyz=(0.0, 0.0, 0.0),
control_surface_symmetry_type="symmetric",
control_surface_hinge_point=0.75,
control_surface_deflection=0.0,
spanwise_spacing=None,
airfoil=ps.geometry.airfoil.Airfoil(
name="naca2412",
outline_A_lp=None,
resample=True,
n_points_per_side=400,
),
),
],
name="Main Wing",
Ler_Gs_Cgs=(0.0, 0.0, 0.0),
angles_Gs_to_Wn_ixyz=(0.0, 0.0, 0.0),
symmetric=True,
mirror_only=False,
symmetryNormal_G=(0.0, 1.0, 0.0),
symmetryPoint_G_Cg=(0.0, 0.0, 0.0),
num_chordwise_panels=4,
chordwise_spacing="uniform",
),
ps.geometry.wing.Wing(
wing_cross_sections=[
ps.geometry.wing_cross_section.WingCrossSection(
num_spanwise_panels=6,
chord=1.0,
Lp_Wcsp_Lpp=(0.0, 0.0, 0.0),
angles_Wcsp_to_Wcs_ixyz=(0.0, 0.0, 0.0),
control_surface_symmetry_type="symmetric",
control_surface_hinge_point=0.75,
control_surface_deflection=0.0,
spanwise_spacing="cosine",
airfoil=ps.geometry.airfoil.Airfoil(
name="naca0012",
outline_A_lp=None,
resample=True,
n_points_per_side=400,
),
),
ps.geometry.wing_cross_section.WingCrossSection(
num_spanwise_panels=None,
chord=1.0,
Lp_Wcsp_Lpp=(0.0, 1.0, 0.0),
angles_Wcsp_to_Wcs_ixyz=(0.0, 0.0, 0.0),
control_surface_symmetry_type="symmetric",
control_surface_hinge_point=0.75,
control_surface_deflection=0.0,
spanwise_spacing=None,
airfoil=ps.geometry.airfoil.Airfoil(
name="naca0012",
outline_A_lp=None,
resample=True,
n_points_per_side=400,
),
),
],
name="Horizontal Stabilizer",
Ler_Gs_Cgs=(5.0, 0.0, 0.5),
angles_Gs_to_Wn_ixyz=(0.0, -5.0, 0.0),
symmetric=True,
mirror_only=False,
symmetryNormal_G=(0.0, 1.0, 0.0),
symmetryPoint_G_Cg=(0.0, 0.0, 0.0),
num_chordwise_panels=4,
chordwise_spacing="uniform",
),
ps.geometry.wing.Wing(
wing_cross_sections=[
ps.geometry.wing_cross_section.WingCrossSection(
num_spanwise_panels=6,
chord=1.0,
Lp_Wcsp_Lpp=(0.0, 0.0, 0.0),
angles_Wcsp_to_Wcs_ixyz=(0.0, 0.0, 0.0),
control_surface_symmetry_type=None,
control_surface_hinge_point=0.75,
control_surface_deflection=0.0,
spanwise_spacing="cosine",
airfoil=ps.geometry.airfoil.Airfoil(
name="naca0012",
outline_A_lp=None,
resample=True,
n_points_per_side=400,
),
),
ps.geometry.wing_cross_section.WingCrossSection(
num_spanwise_panels=None,
chord=1.0,
Lp_Wcsp_Lpp=(0.0, 2.0, 0.0),
angles_Wcsp_to_Wcs_ixyz=(0.0, 0.0, 0.0),
control_surface_symmetry_type=None,
control_surface_hinge_point=0.75,
control_surface_deflection=0.0,
spanwise_spacing=None,
airfoil=ps.geometry.airfoil.Airfoil(
name="naca0012",
outline_A_lp=None,
resample=True,
n_points_per_side=400,
),
),
],
name="Vertical Stabilizer",
Ler_Gs_Cgs=(5.0, 0.0, 1.0),
angles_Gs_to_Wn_ixyz=(90.0, 0.0, 0.0),
symmetric=False,
mirror_only=False,
symmetryNormal_G=None,
symmetryPoint_G_Cg=None,
num_chordwise_panels=4,
chordwise_spacing="uniform",
),
],
name="Example Airplane",
Cg_GP1_CgP1=(0.0, 0.0, 0.0),
weight=420.0,
s_ref=None,
c_ref=None,
b_ref=None,
)
# Now define each Wing's WingMovements (and the WingCrossSectionMovements they contain).
# The main Wing was defined with symmetric=True, mirror_only=False, and a symmetry plane
# coincident with its axes' xz-plane, giving it type 4 symmetry (see the Wing class
# documentation for more details on symmetry types), so it stays a single Wing and is
# not split into a separate reflected Wing. The Airplane therefore has exactly three
# Wings, and we need one WingMovement per Wing.
#
# This is a free flight of a rigid glider, so there is no prescribed flapping or
# deformation: every prescribed-motion amplitude is left at its zero default. The only
# motion in the simulation comes from the rigid body dynamics during the free flight
# phase. We build the movements with a loop, since with all-default (static) motion they
# are identical in form across the three Wings.
wing_movements = []
for wing in example_airplane.wings:
wing_cross_section_movements = [
ps.movements.wing_cross_section_movement.WingCrossSectionMovement(
base_wing_cross_section=wing_cross_section,
)
for wing_cross_section in wing.wing_cross_sections
]
wing_movements.append(
ps.movements.wing_movement.WingMovement(
base_wing=wing,
wing_cross_section_movements=wing_cross_section_movements,
)
)
# Now define the example airplane's AirplaneMovement. As with the Wings, the
# airplane-level prescribed motion is left at its zero defaults.
airplane_movement = ps.movements.airplane_movement.AirplaneMovement(
base_airplane=example_airplane,
wing_movements=wing_movements,
)
# Delete the extraneous pointer to the WingMovements, as these are now contained within
# the AirplaneMovement. This is optional, but it can make debugging easier.
del wing_movements
# Define a new OperatingPoint describing the trimmed gliding condition. The speed and
# angle of attack are the trimmed glide found for this airframe. The initial body
# orientation (angles_E_to_BP1_izyx) pitches the airplane nose up by the angle of attack
# with zero sideslip, which places the trim velocity along the horizontal Earth x axis
# at the start of free flight. The glider flies an unpowered glide: externalFX_W must be
# zero in free flight (the dynamics never apply it), and thrust would instead be modeled
# with FreeFlightUnsteadyProblem's external_loads_fn. Standard gravity is set explicitly
# via g_E (the default is no gravitational field), while the zero initial body rates
# (omegas_BP1__E) are left at their default.
example_operating_point = ps.operating_point.OperatingPoint(
rho=1.225,
vCg__E=12.9,
alpha=3.3,
beta=0.0,
angles_E_to_BP1_izyx=(0.0, 3.3, 0.0),
externalFX_W=0.0,
nu=15.06e-6,
g_E=(0.0, 0.0, 9.80665),
)
# Define the operating point's FreeFlightOperatingPointMovement. It holds only the
# initial OperatingPoint; the solver populates its operating_points list with the body
# state from the dynamics integration at each time step.
operating_point_movement = (
ps.movements.free_flight_operating_point_movement.FreeFlightOperatingPointMovement(
base_operating_point=example_operating_point,
)
)
# Delete the extraneous pointer.
del example_operating_point
# Define the FreeFlightMovement. This contains the AirplaneMovement and the
# FreeFlightOperatingPointMovement. The glider first holds its trimmed condition for
# prescribed_num_steps time steps so the wake can develop, then the solver releases the
# rigid body dynamics for the remaining free_num_steps time steps.
movement = ps.movements.free_flight_movement.FreeFlightMovement(
airplane_movements=[airplane_movement],
operating_point_movement=operating_point_movement,
delta_time=0.01292,
prescribed_num_steps=5,
free_num_steps=195,
)
# Delete the extraneous pointers.
del airplane_movement
del operating_point_movement
# Define the FreeFlightUnsteadyProblem. The inertia matrix is the one tuned alongside
# the planform geometry for static stability and verified in XFLR5. It is expressed in
# the first Airplane's body axes relative to the first Airplane's center of gravity,
# which is at the geometry origin. The off-diagonal terms are the body-axes products of
# inertia. The mass equals the Airplane's weight (420.0 N) divided by the gravitational
# acceleration magnitude (9.80665 m/s^2), which keeps the weight, mass, and gravity
# consistent; the solver applies the gravitational force as mass * g_E. No external
# loads are applied (external_loads_fn=None), so the glider flies an unpowered glide
# driven only by its aerodynamics, gravity, and inertia.
example_problem = ps.problems.FreeFlightUnsteadyProblem(
movement=movement,
mass=420.0 / 9.80665,
I_BP1_CgP1=(
(155.614, 0.0, -45.658),
(0.0, 398.513, 0.0),
(-45.658, 0.0, 508.699),
),
external_loads_fn=None,
)
# Delete the extraneous pointer.
del movement
# Define a new solver. We'll create a FreeFlightUnsteadyRingVortexLatticeMethodSolver,
# which requires a FreeFlightUnsteadyProblem.
example_solver = ps.free_flight_unsteady_ring_vortex_lattice_method.FreeFlightUnsteadyRingVortexLatticeMethodSolver(
free_flight_unsteady_problem=example_problem,
)
# Delete the extraneous pointer.
del example_problem
# Run the solver.
example_solver.run(
prescribed_wake=False,
show_progress=True,
)
# Save the solved solver to a compressed JSON file. This allows us to load the results
# later without re-running the simulation. Use ".json.gz" for gzip compression, which is
# recommended over plain JSONs for all but the smallest, unmeshed geometry objects.
ps.save("example_solver.json.gz", example_solver)
# Load the saved solver. The loaded object is identical to the original and can be
# passed to any output function.
loaded_solver = ps.load("example_solver.json.gz")

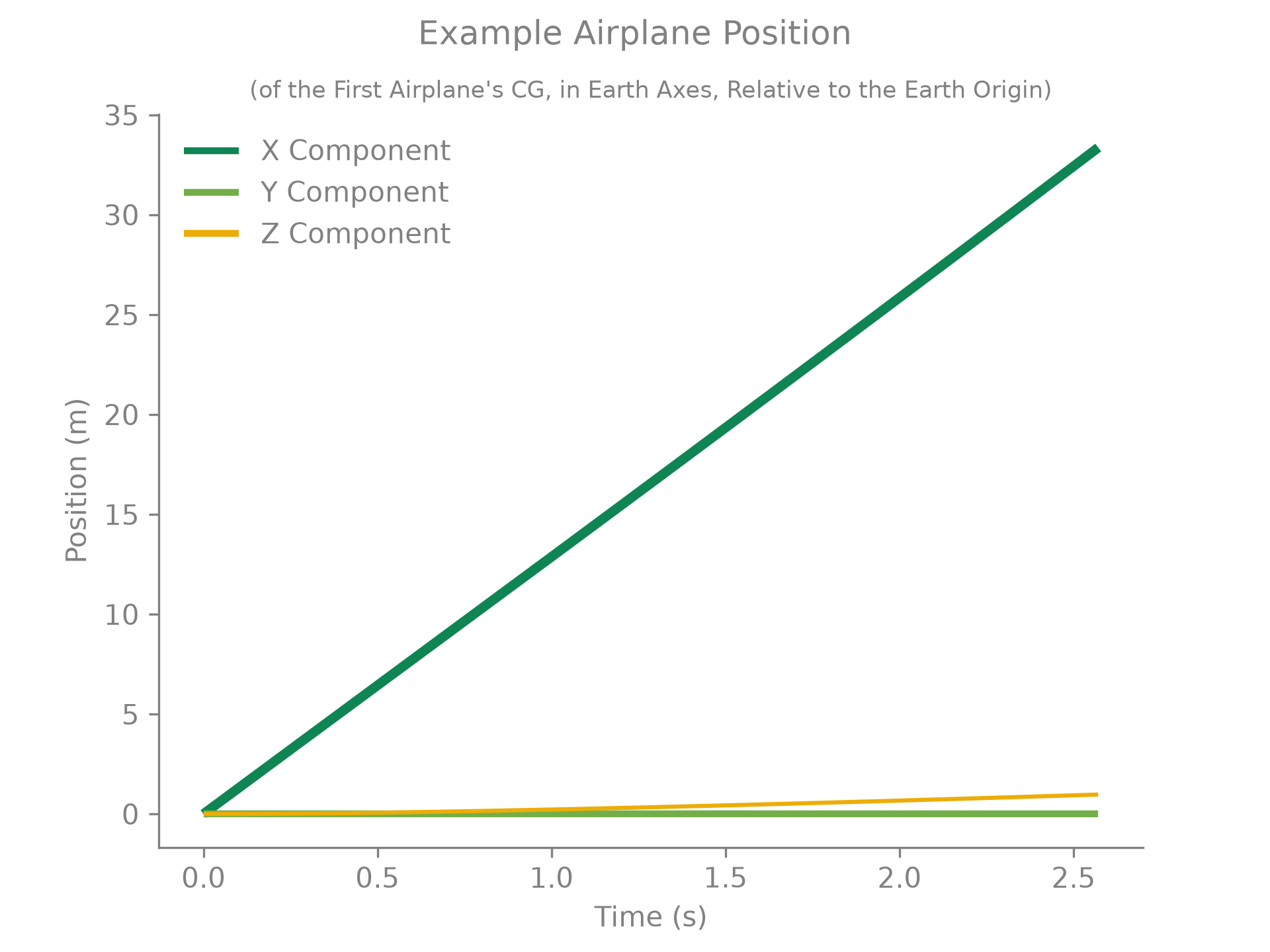

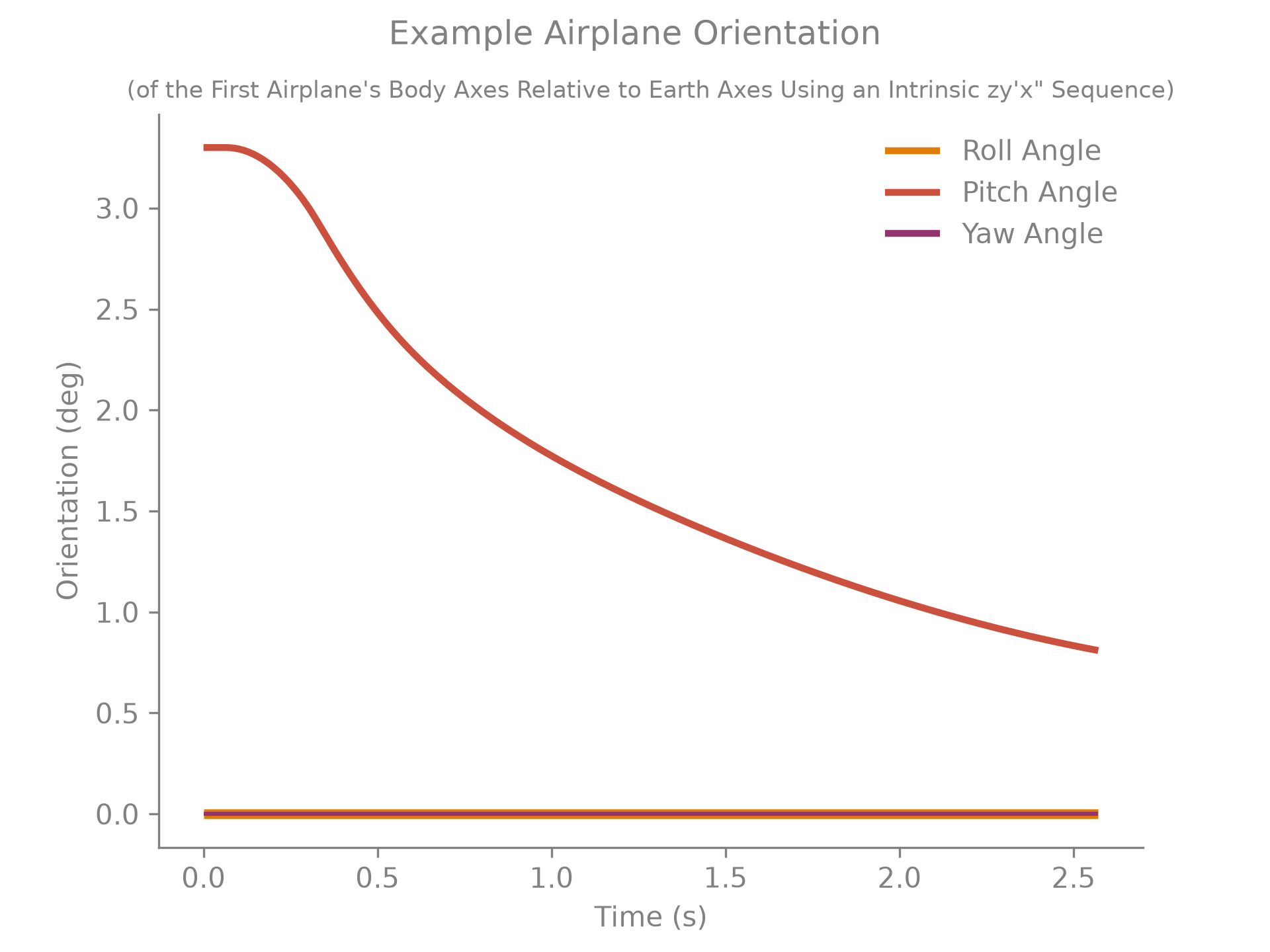

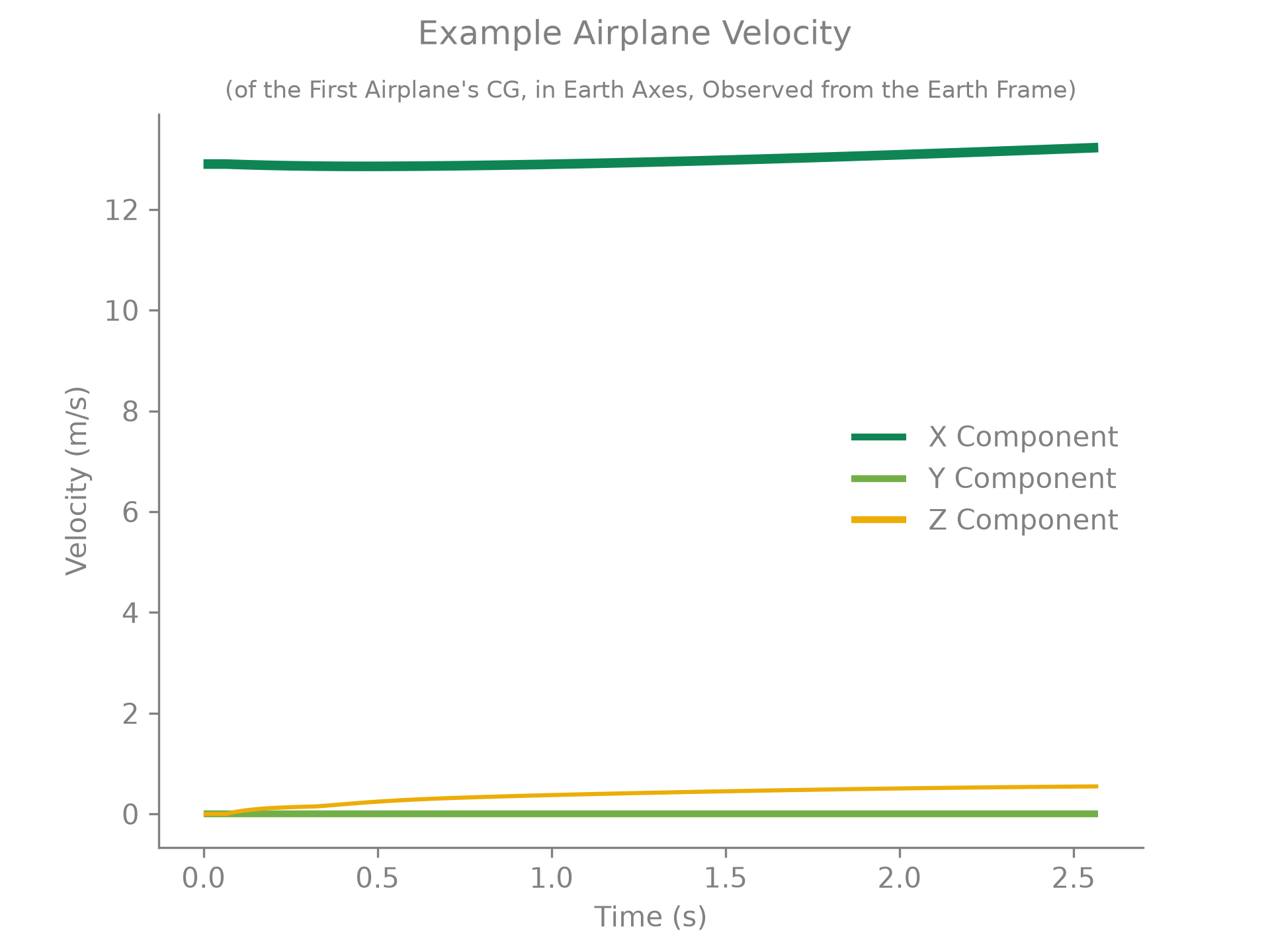

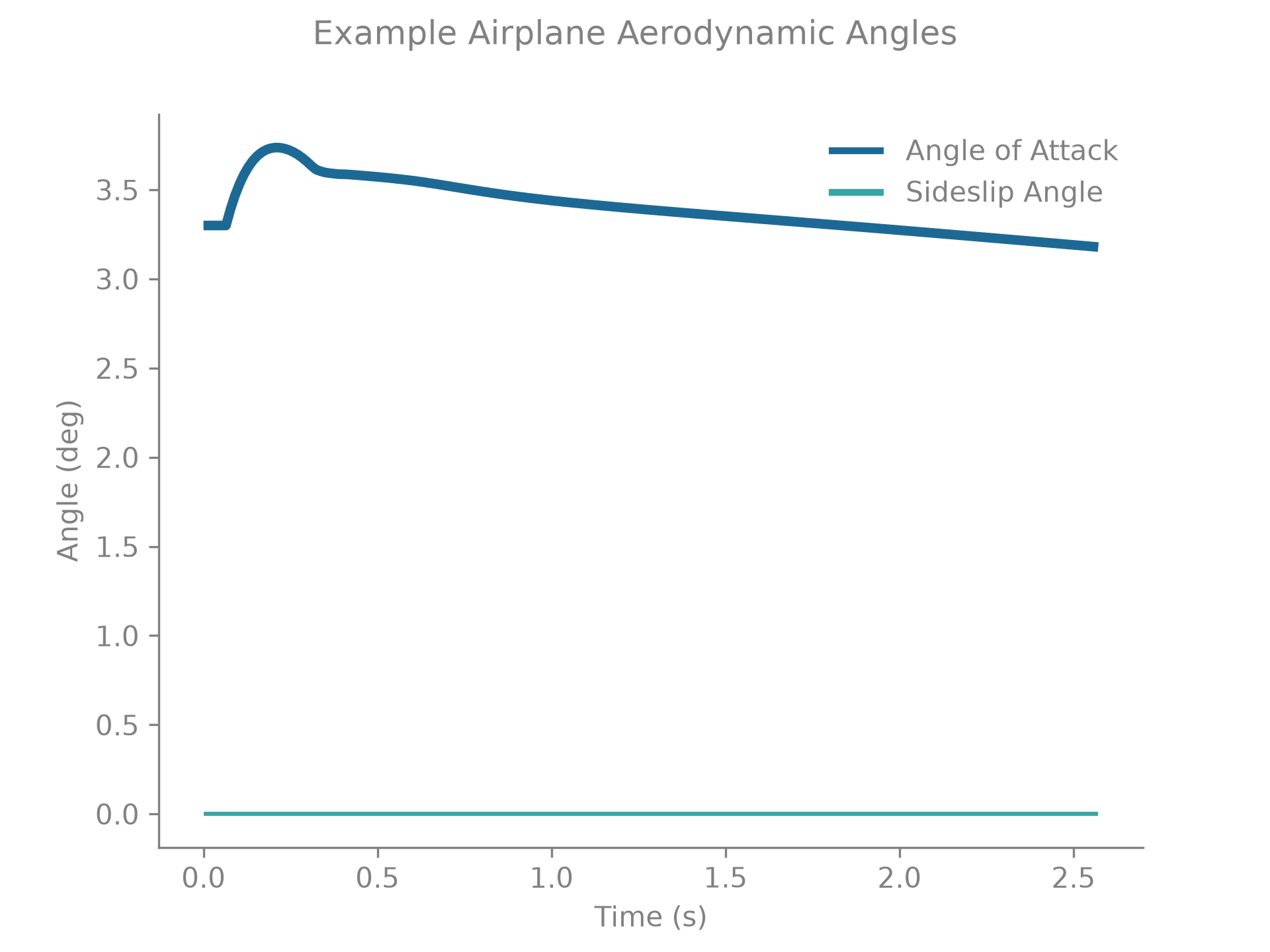

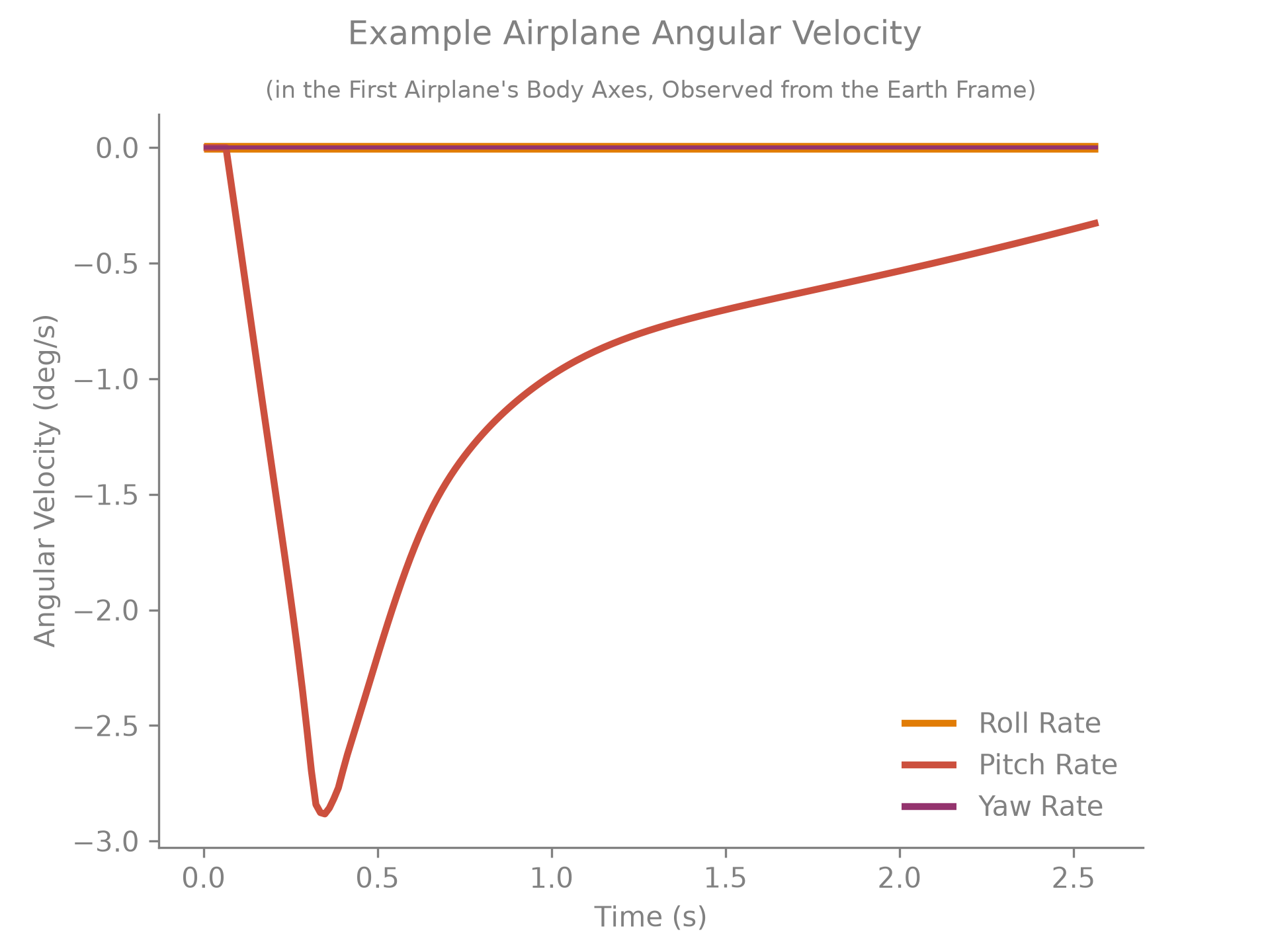

# Log the loaded solver's loads. For a free flight solver, this also logs the first
# Airplane's initial and final six-degree-of-freedom state: its position, velocity,
# orientation, angular velocity, and aerodynamic angles.
ps.output.log_results(solver=loaded_solver)

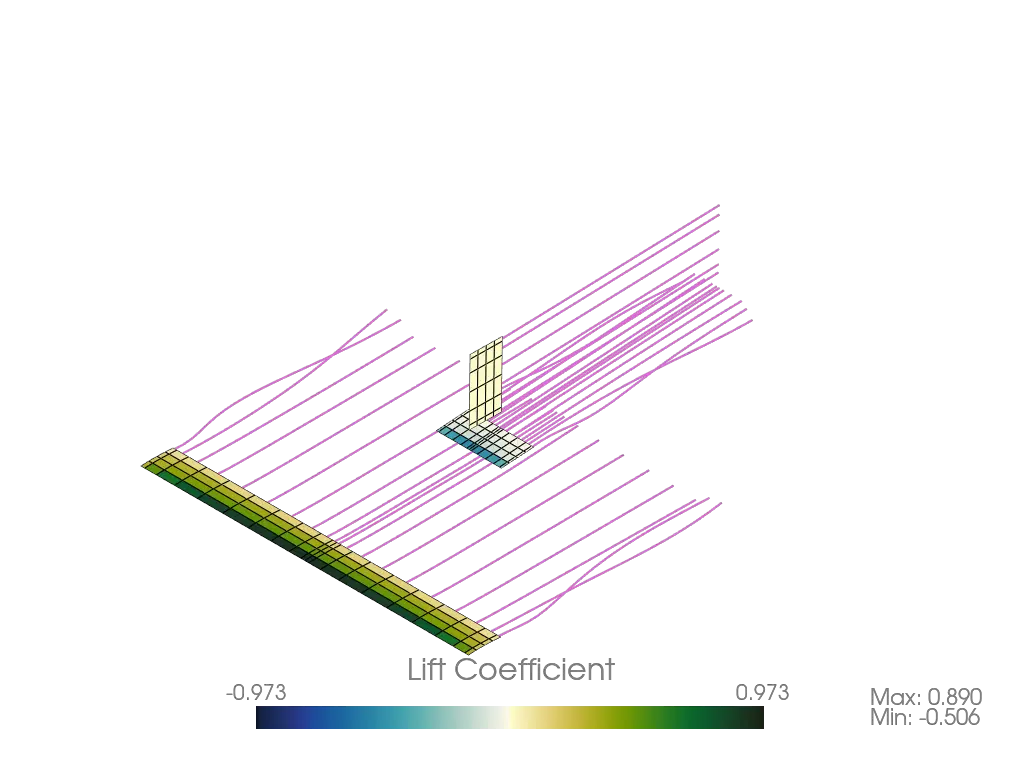

# Call the draw function on the loaded solver. For a free flight solver, the geometry is
# drawn in Earth axes at the final time step's true flight pose, so the airplane appears
# where and how it ended up after final time step. Press any key to close the plotter
# after it draws the output.
ps.output.draw(
solver=loaded_solver,
scalar_type="lift",
show_streamlines=True,
show_wake_vortices=False,
save=True,
)

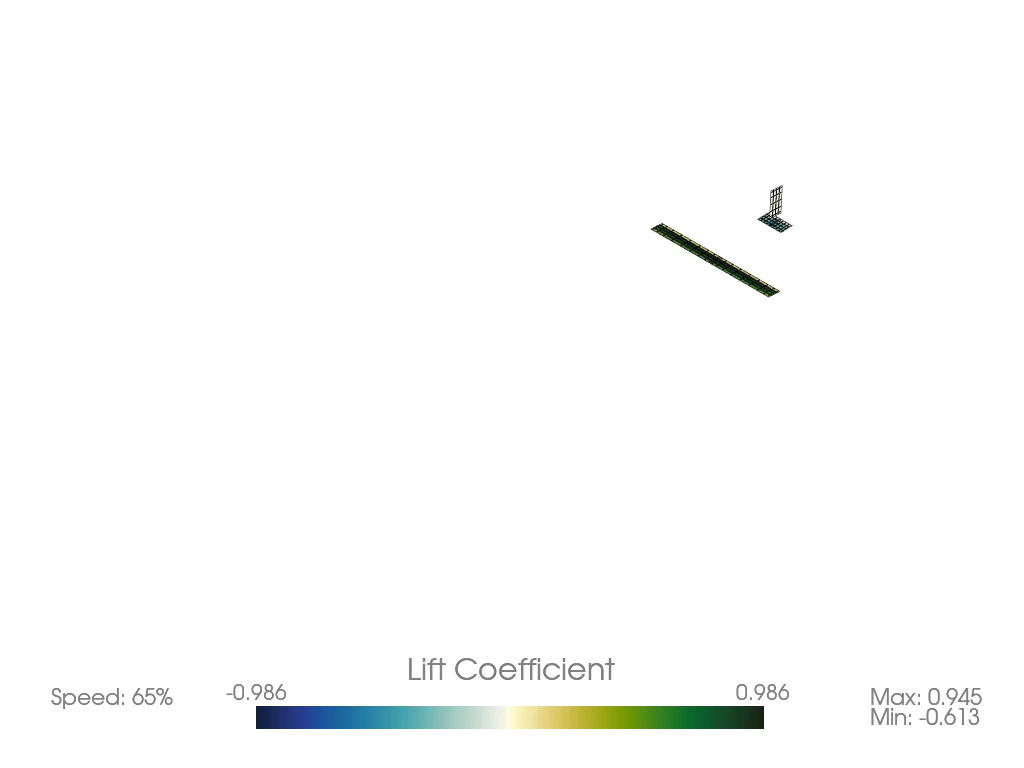

# Call the animate function on the loaded solver. For a free flight solver, this flies
# the airplane through the scene along its computed trajectory, producing a GIF saved in
# the same directory as this script. Press any key, after orienting the view, to begin
# the animation.
ps.output.animate(
unsteady_solver=loaded_solver,
scalar_type="lift",
show_wake_vortices=True,
save=True,
)

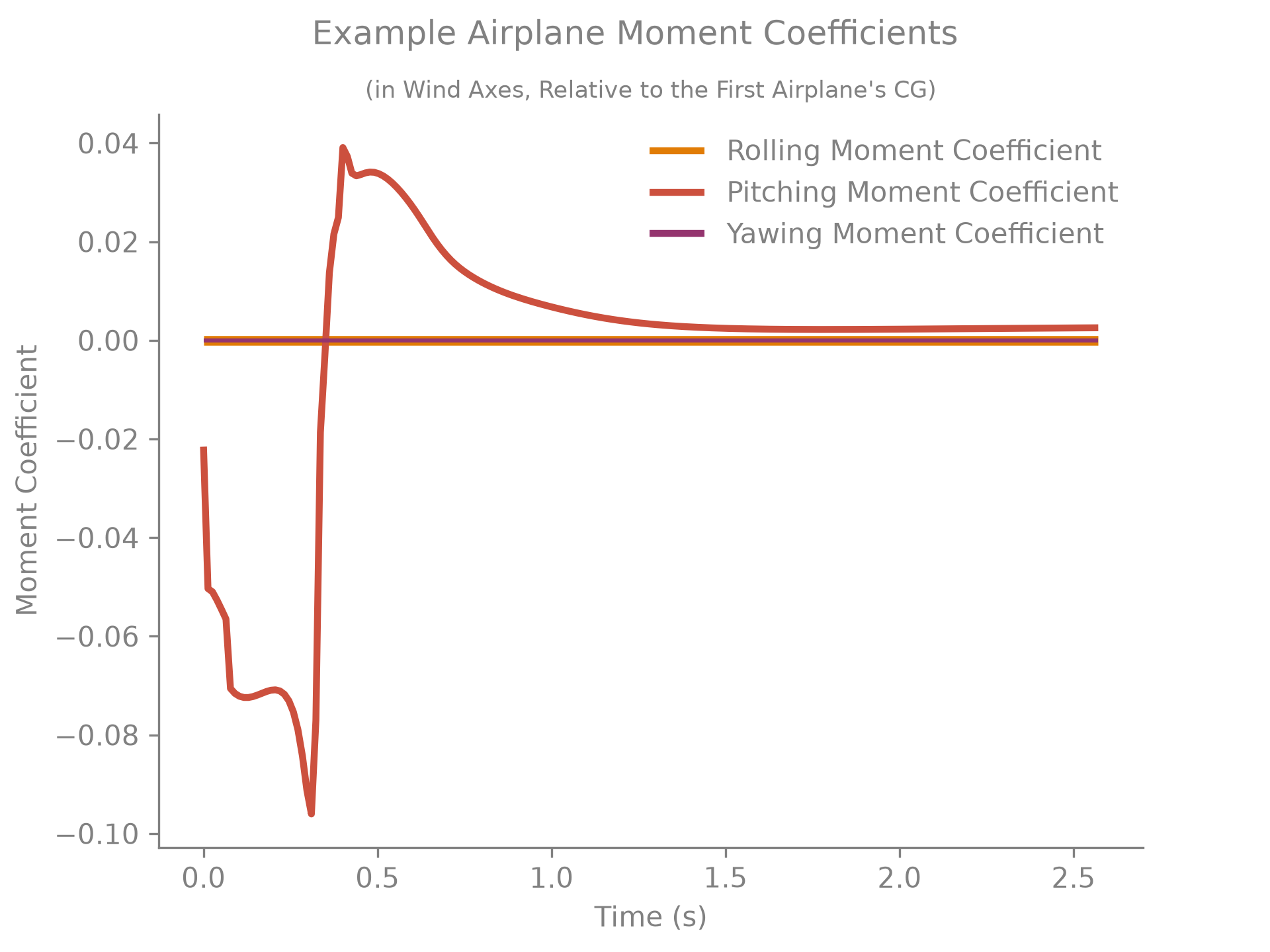

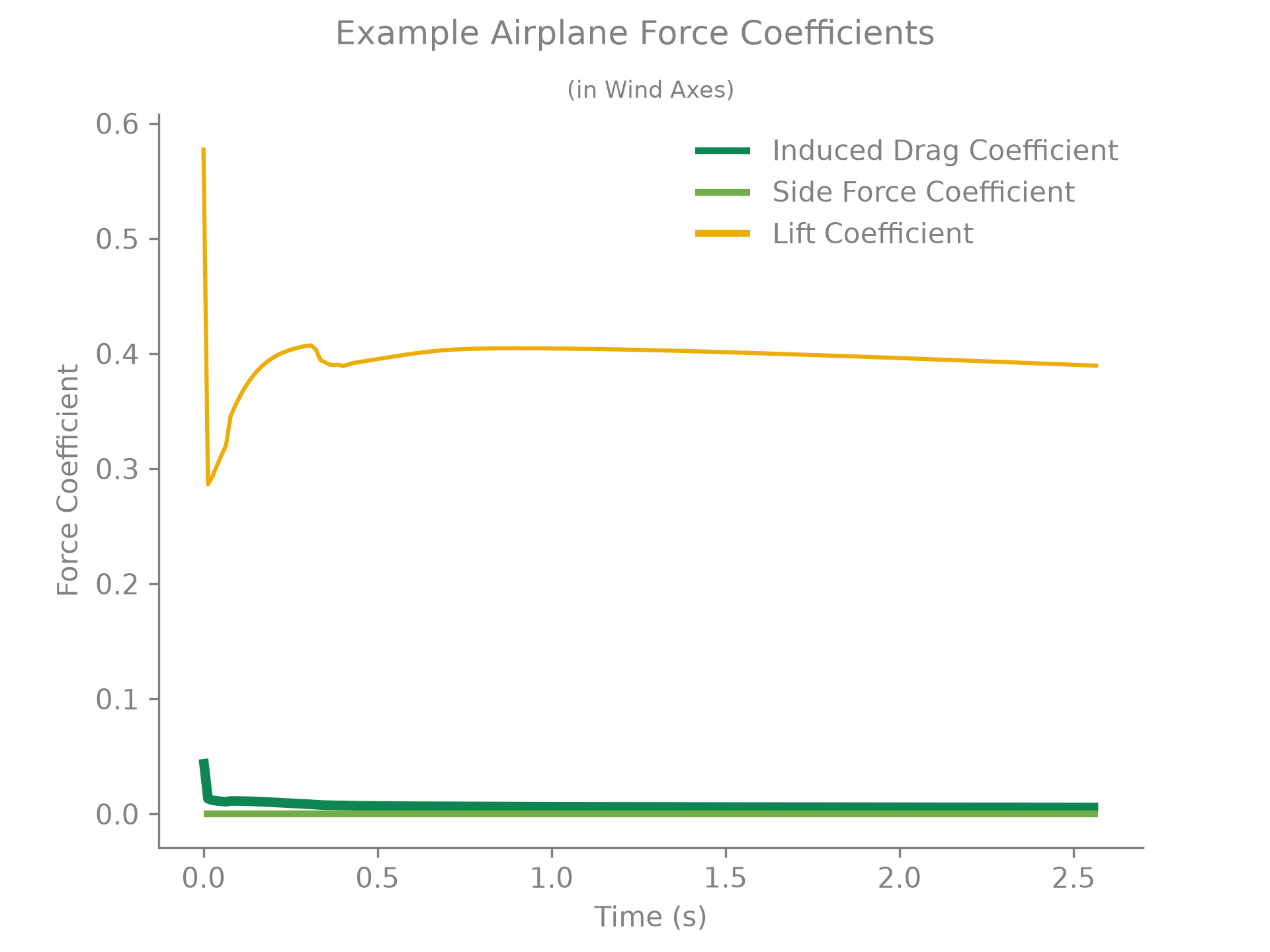

# Call the plotting function on the solver. This produces graphs of the loads with
# respect to time. For a free flight solver, it also plots the first Airplane's
# six-degree-of-freedom state history.
ps.output.plot_results_versus_time(
unsteady_solver=loaded_solver,
show=True,
save=True,
)
